promethues上监控K3S中的pod的状态

news 2025/8/3 19:10:22

第一步：安装kube-state-metrics

1、解决方案1：下载 Chart 文件

wget https://charts.bitnami.com/bitnami/kube-state-metrics-3.4.1.tgz
tar -zxvf kube-state-metrics-3.4.1.tgz
cd kube-state-metrics

2、如果value.yaml文件中镜像已经是国内源可以不用修改，不然修改如下

image:registry: docker.iorepository: bitnami/kube-state-metricstag: 1.9.7

3、安装

helm install kube-state-metrics . \--namespace kube-system \--create-namespace

解决方案2：直接使用kubectl部署

1、如果 Helm 完全不可用，可以直接通过 YAML 部署：

kubectl apply -f https://raw.githubusercontent.com/bitnami/charts/main/bitnami/kube-state-metrics/templates/deployment.yaml
# 手动修改 YAML 中的镜像为国内源

2、验证安装

kubectl get pods -n kube-system -l app.kubernetes.io/name=kube-state-metrics
kubectl logs -n kube-system -l app.kubernetes.io/name=kube-state-metrics

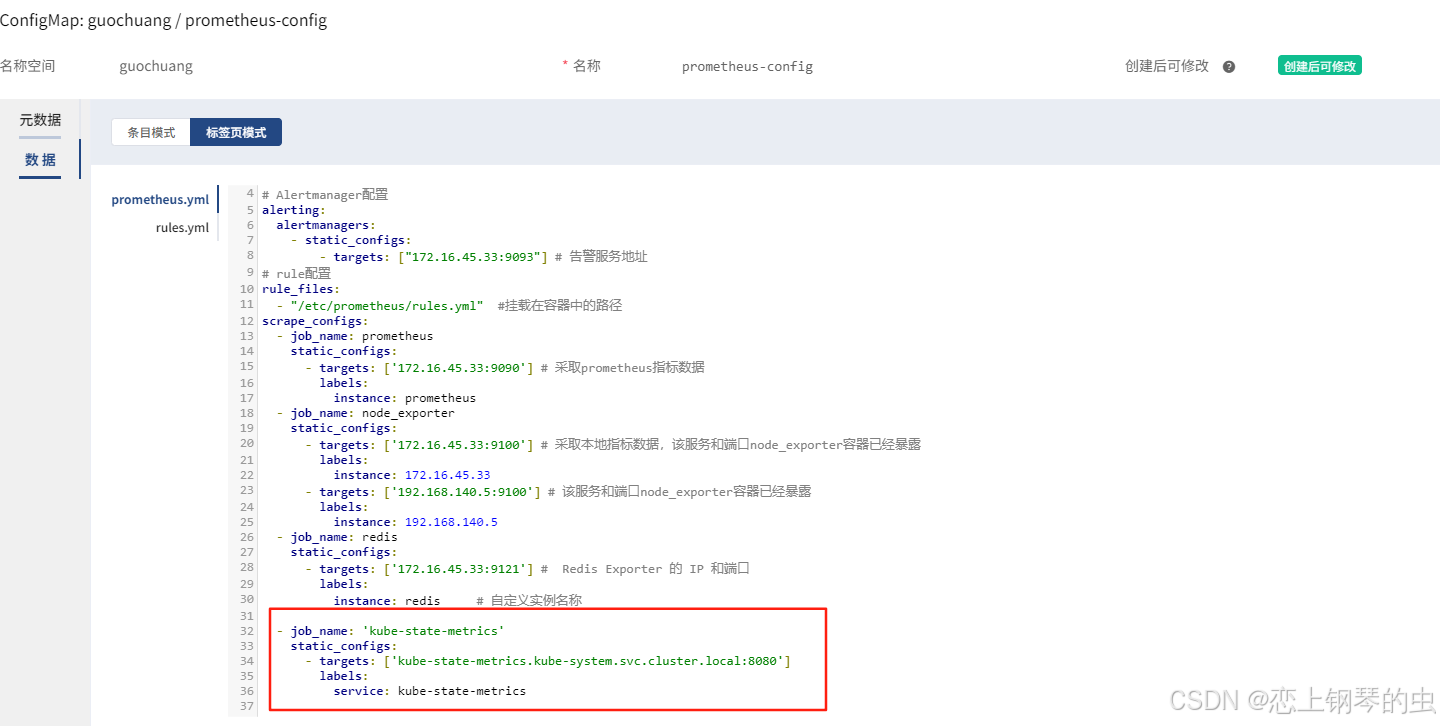

第二步：配置promethues.yaml文件，添加kube-state-metrics

  - job_name: 'kube-state-metrics'static_configs:- targets: ['kube-state-metrics.kube-system.svc.cluster.local:8080']labels:service: kube-state-metrics

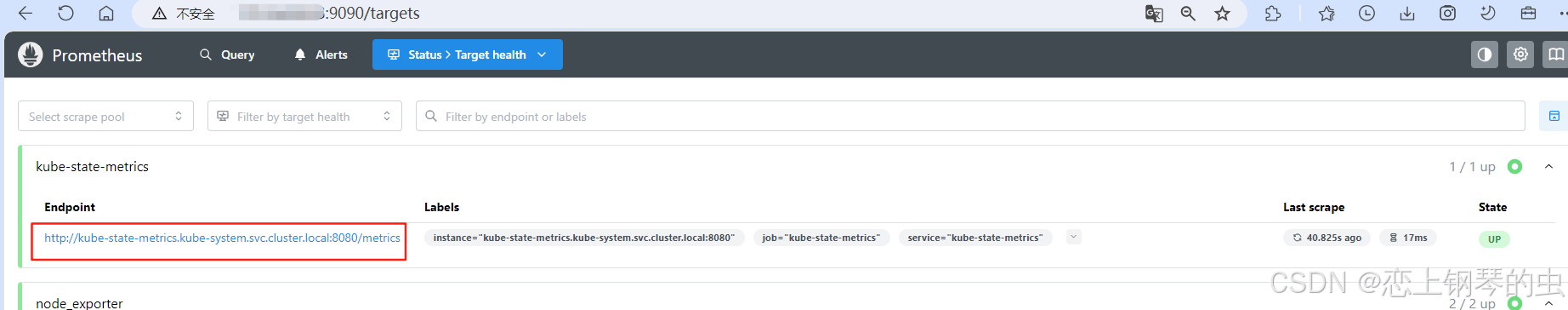

第三步：重启promethues后，点击promethues中的Target页面，显示刚刚添加的metrics为up状态。

第四步，修改rules.yaml文件，添加监控pod的告警规则

# Pod卡在Pending状态- alert: PodStuckPendingexpr: kube_pod_status_phase{phase="Pending"} == 1for: 5mlabels:severity: criticalannotations:summary: "Pod {{ $labels.pod }} stuck in Pending"description: "Pod {{ $labels.pod }} in {{ $labels.namespace }} has been Pending for 10+ minutes"# Pod处于Failed状态- alert: PodFailedexpr: kube_pod_status_phase{phase="Failed"} == 1for: 2mlabels:severity: criticalannotations:summary: "Pod {{ $labels.pod }} in Failed state"# 容器频繁重启- alert: PodCrashLoopingexpr: rate(kube_pod_container_status_restarts_total[5m]) > 0.5for: 5mlabels:severity: criticalannotations:summary: "Pod {{ $labels.pod }} crash looping"# 容器OOM被杀- alert: ContainerOOMKilledexpr: kube_pod_container_status_last_terminated_reason{reason="OOMKilled"} == 1labels:severity: criticalannotations:summary: "Container {{ $labels.container }} OOM killed"

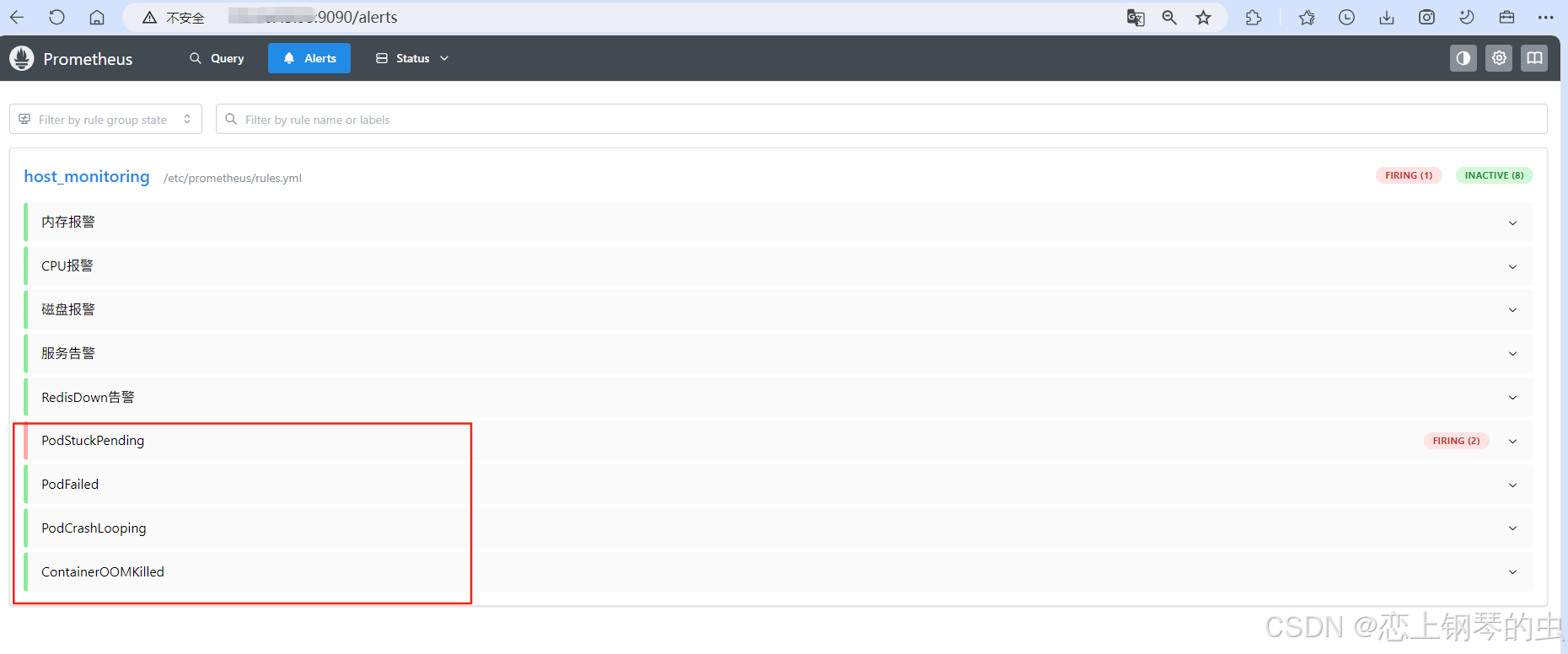

第五步：重启promethues后，点击Alerts的页面，显示添加的告警规则
